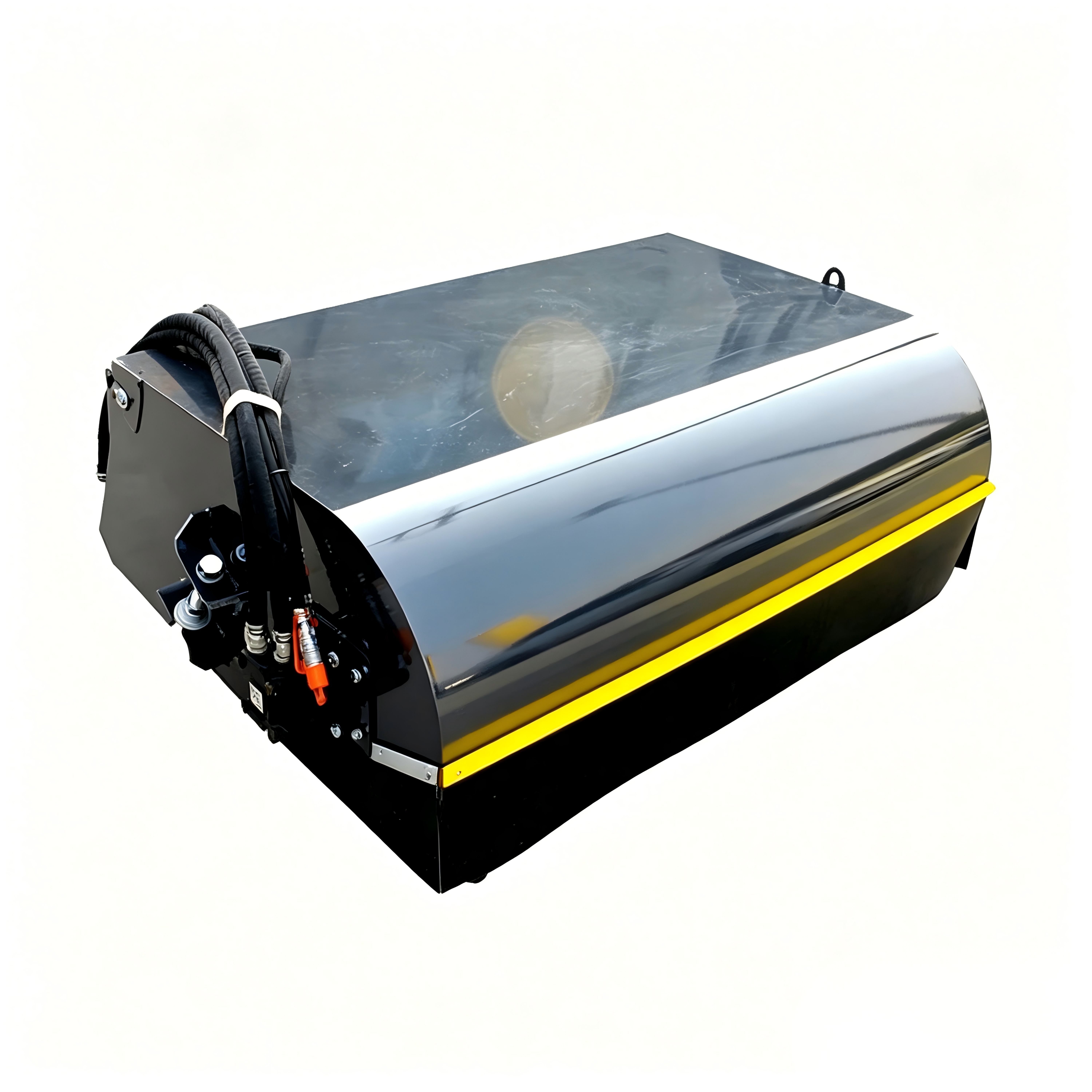

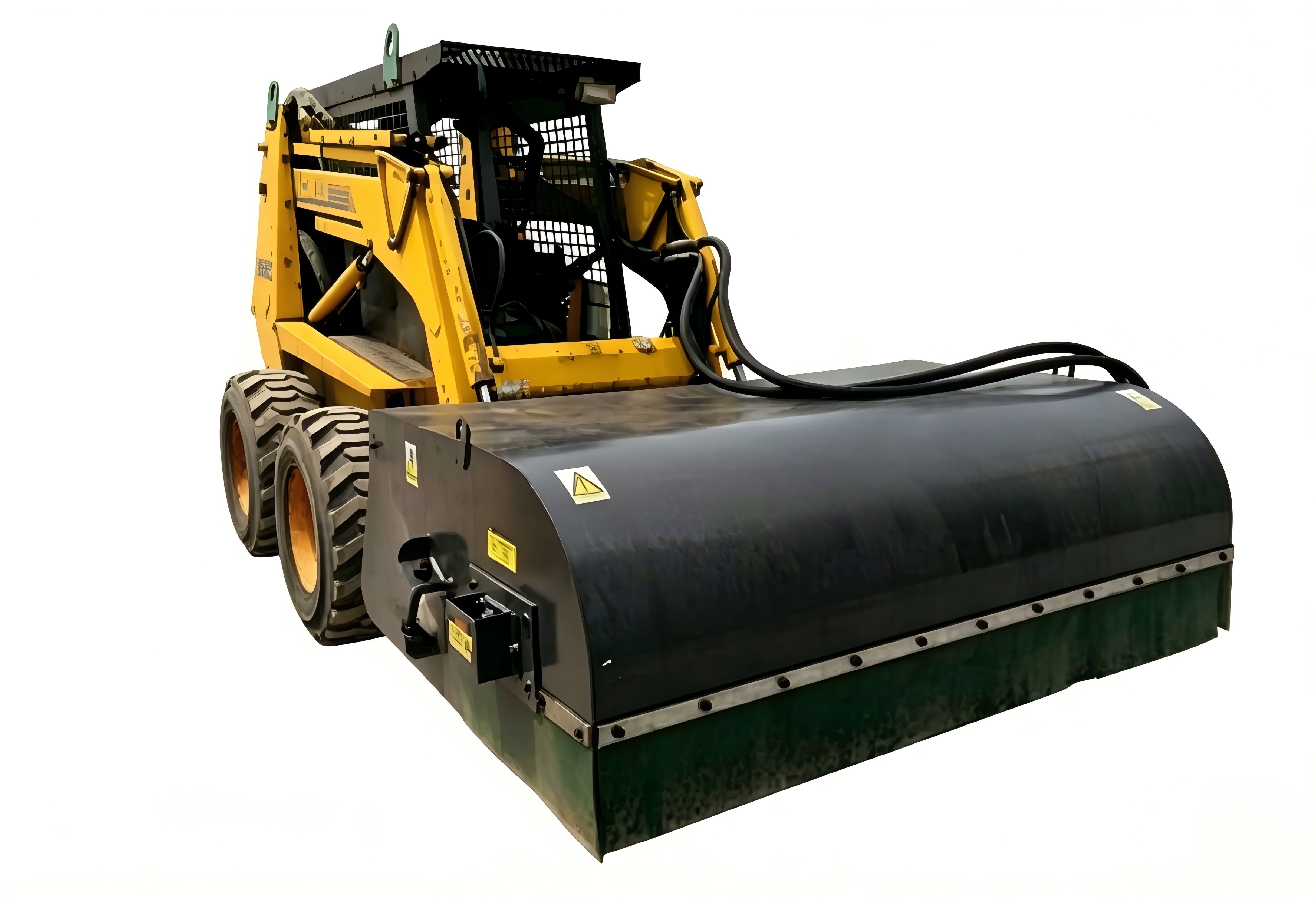

Application Scenarios: Engineered for refined surface cleaning on roads, construction sites, industrial facilities and municipal infrastructure projects. |
|
Product Features： ◆ Compatible with Loader, Skid-Steer Loader and forklift. ◆ Compact structure, lightweight, and user-friendly operation. ◆ Integrated sweeping and bucket functions enable one-pass cleaning, collection, and material handling. ◆ Fully enclosed design minimizes dust emission; hydrostatic drive allows efficient bi-directional operation. ◆ Brush drum features open-type adjustable bolts for easy maintenance and adjustment. |
|
Model |
Unit |
RH00160 |
RH00172 |
RH00184 |
|
Overall Length |
mm |
1394 |
1394 |
1394 |
|
Overall Width |
mm |
1678 |
1982 |
2133 |
|
Overall Height |
mm |
663 |
663 |
663 |
|
Operation Width |
mm |
1524 |
1828 |
2133 |
|
Brush Diameter |
mm |
660 |
660 |
660 |
|
Bucket Capacity |
m³ |
0.39 |
0.48 |
0.56 |
|
Motor Flow |
lpm |
60-80 |
60-80 |
60-80 |
|
Working Pressure |
MPa |
13.79-24.13 |
13.79-24.13 |
13.79-24.13 |
|
psi |
2000-3500 |
2000-3500 |
2000-3500 |
|
|
Overall Weight |
kg |
1050 |
1150 |
1215 |
|

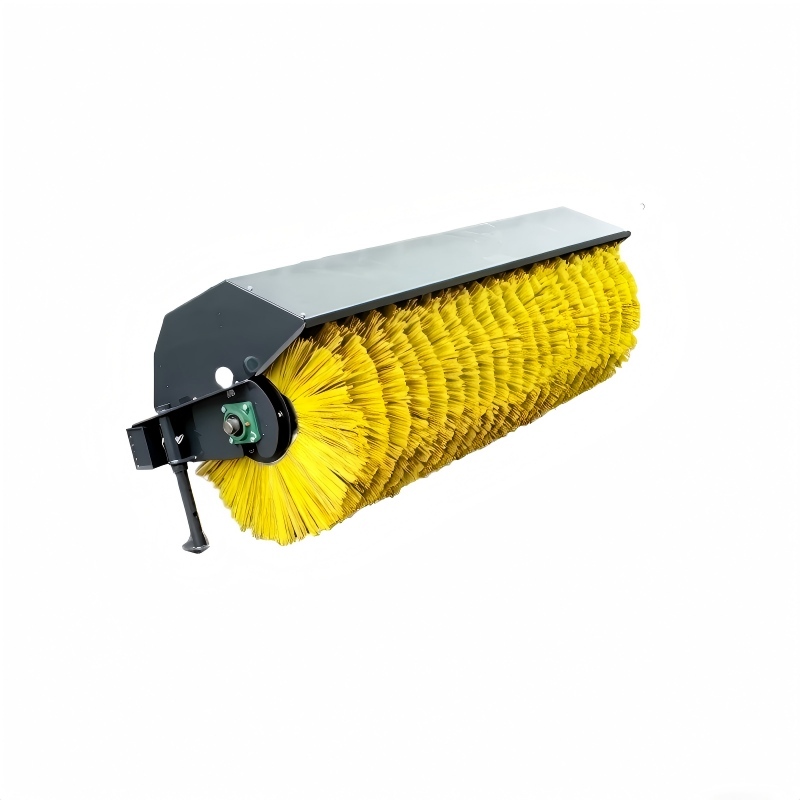

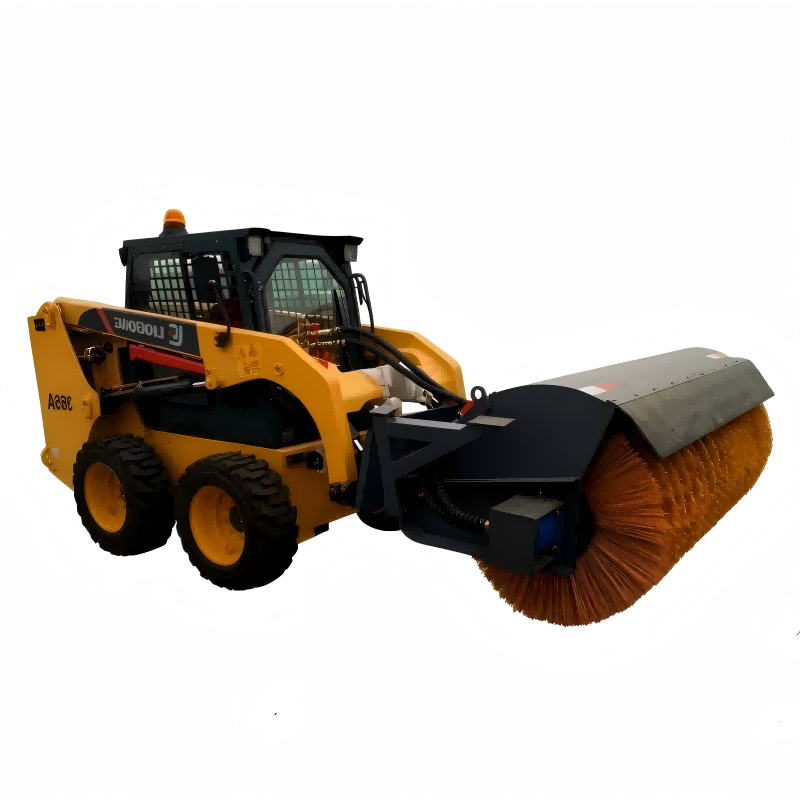

Application Scenarios: Engineered for clearing debris and snow from common areas such as driveways, sidewalks, parking lots, and warehouses, as well as from narrow spaces like curbs and corners.. |
|
Product Features： ◆ Compatible with Skid-Steer Loader and Tractor. ◆ Angle adjustment via fingertip control enables rapid clearing of snow and debris in operation areas. ◆ Ideal for road sweeping operations, with excellent performance in confined spaces such as sidewalks and parks. ◆ Compact structure, lightweight, flexible operation. |
|
Model |
Unit |
RH00260 |
RH00272 |
RH00284 |
|
Overall Width |
mm |
1790 |
2095 |
2400 |
|
Operation Width |
mm |
1524 |
1828 |
2133 |
|
Operation Width at 30°turn |
mm |
1371 |
1625 |
1965 |
|
Brush Diameter |
mm |
660 |
660 |
660 |
|
Motor Flow |
lpm |
60-80 |
60-80 |
60-80 |
|
Working Pressure |
MPa |
13.79-24.13 |
13.79-24.13 |
13.79-24.13 |
|
psi |
2000-3500 |
2000-3500 |
2000-3500 |
|
|
Overall Weight |
kg |
375 |
442 |
502 |
