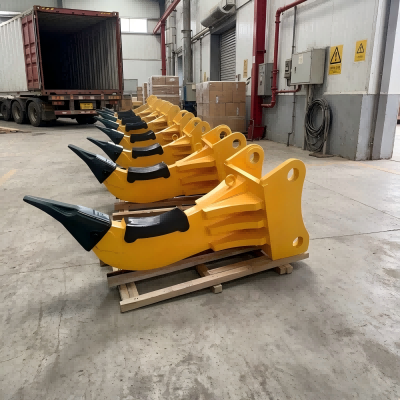

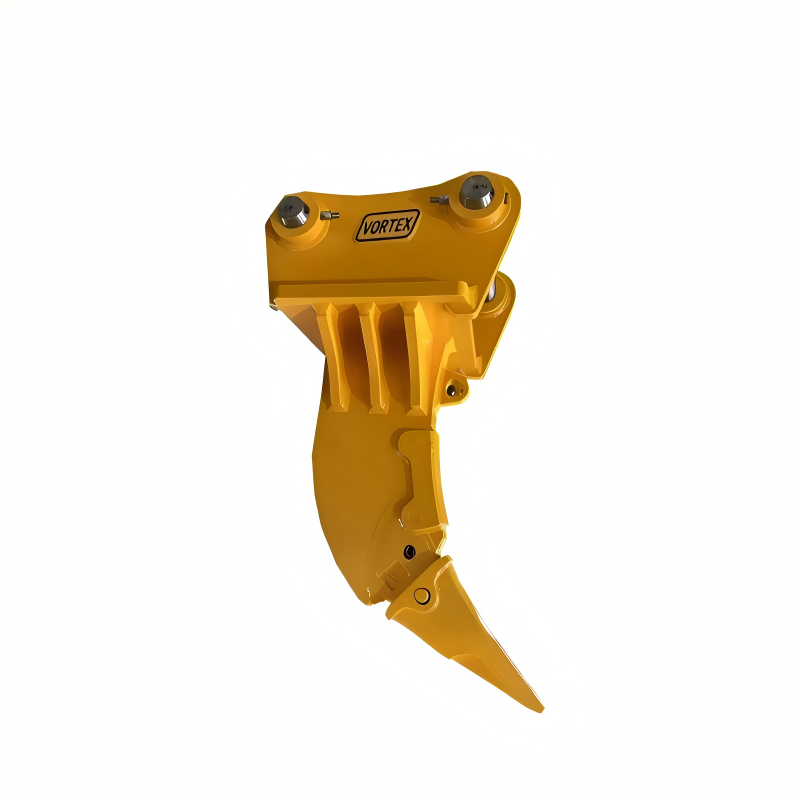

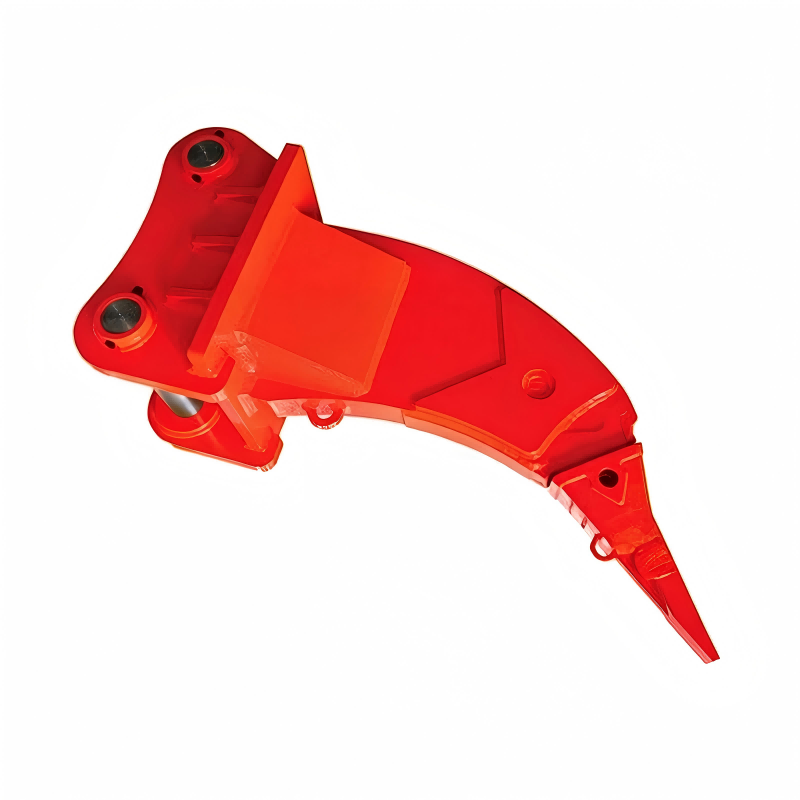

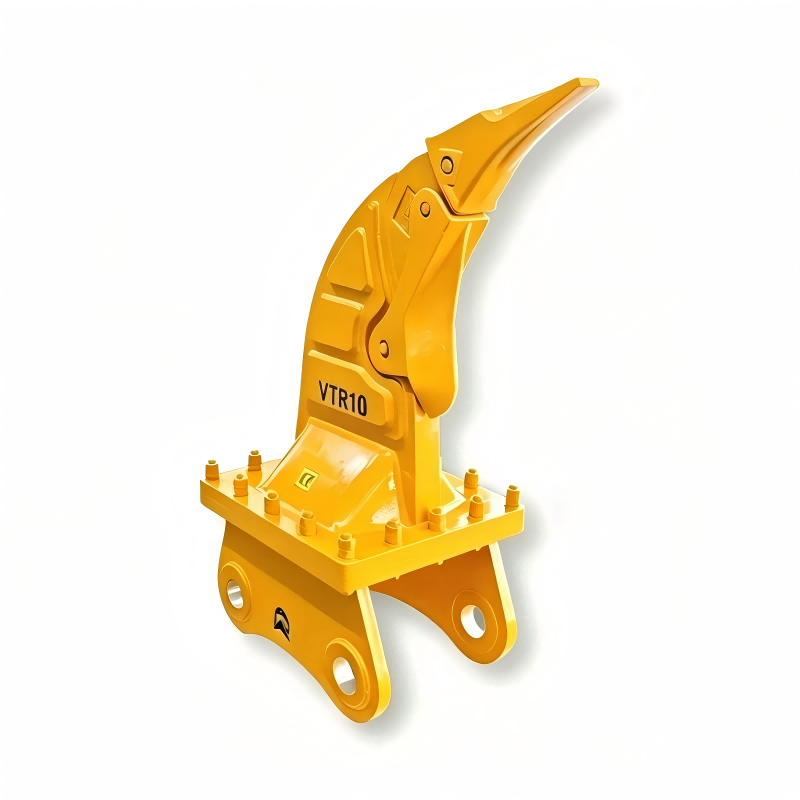

Ripper

No.VORTEX-VTR

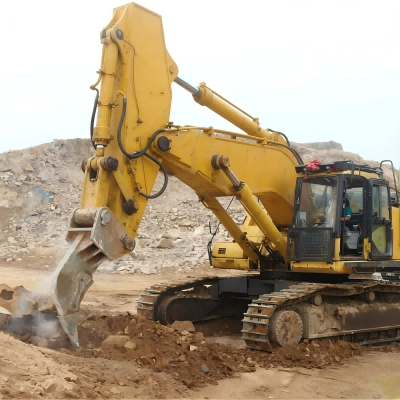

VORTEX Ripper is engineered for the loosening and break-up of hard soil, frozen ground, weathered rock in land reclamation, mining, municipal engineering, road construction.

GET A QUOTE

Download

View all downloads

Product Features：

The main structure is built with Q345 manganese steel plate, providing exceptional strength and corrosion resistance for long-term durability.

The pins are precision-forged from 42CrMo alloy steel with built-in oil circuit, ensuring superior strength and wear resistance.

Technical Specifications

Item/Model	Unit	VTR02	VTR04	VTR06	VTR08	VTR10	VTR14	VTR17	VTR20	VTR24
Suitable Excavator	ton	4-6	5-9	9-16	16-23	23-30	30-39	40-49	20-64	65-90
A: Pin to Pin Distance	mm	265	310	390	465	520	570	Customized	Customized	Customized
B: Overall Width	mm	375	420	570	665	740	820	820	Customized	Customized
C: Overall Height	mm	390	950	1180	1260	1380	1470	1520	1660	1800
D: Pin Diameter	mm	40-50	50-55	60-70	70-80	80-90	80-90	90-110	Customized	Customized
E: Dipper Width	mm	150-180	180-200	200-315	300-350	360-420	360-420	400-500	Customized	Customized
Plate Thickness	mm	50	55	65	80	90	90	90	120	180
Teeth Model	type	DH55	DH150	DH220	D85C	4T5502-2	4T5502-2	4T5502-2	PC700	PC1000
Weight	Kg	60	160	245	420	620	775	825	Customized	Customized
