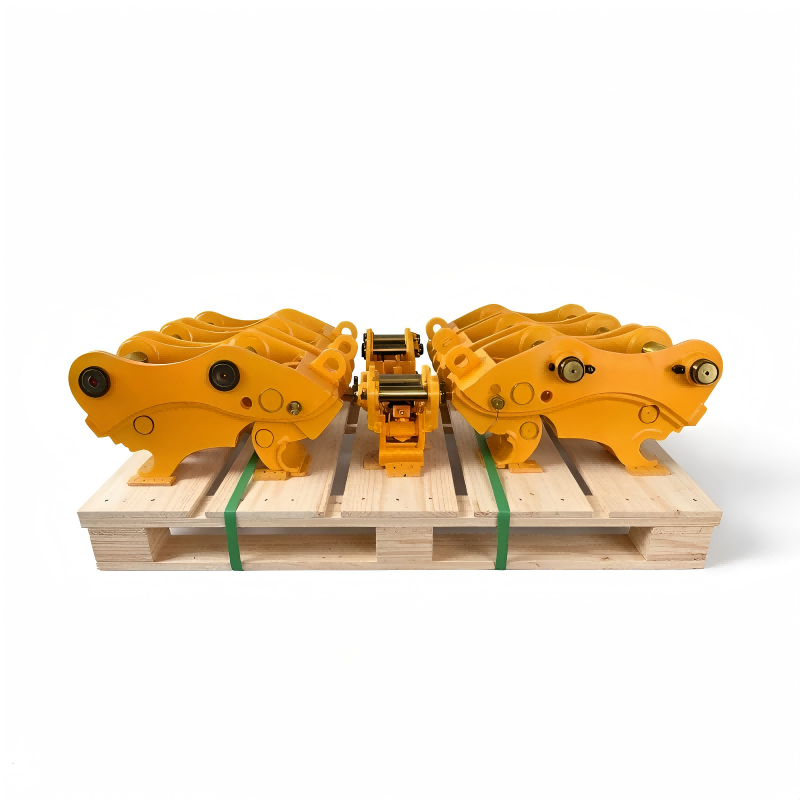

Quick Coupler

No.VORTEX-VTC

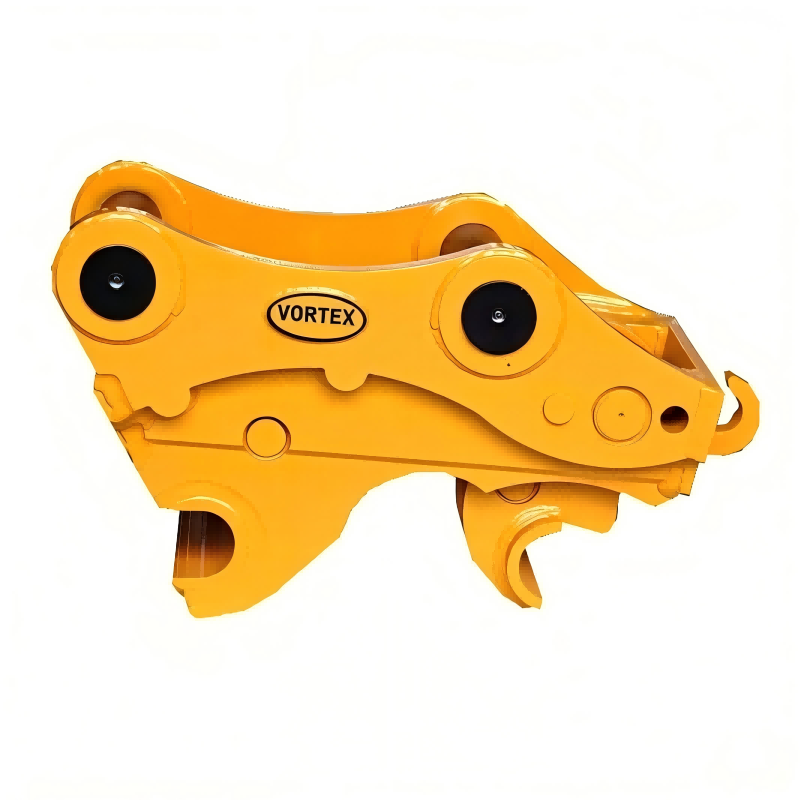

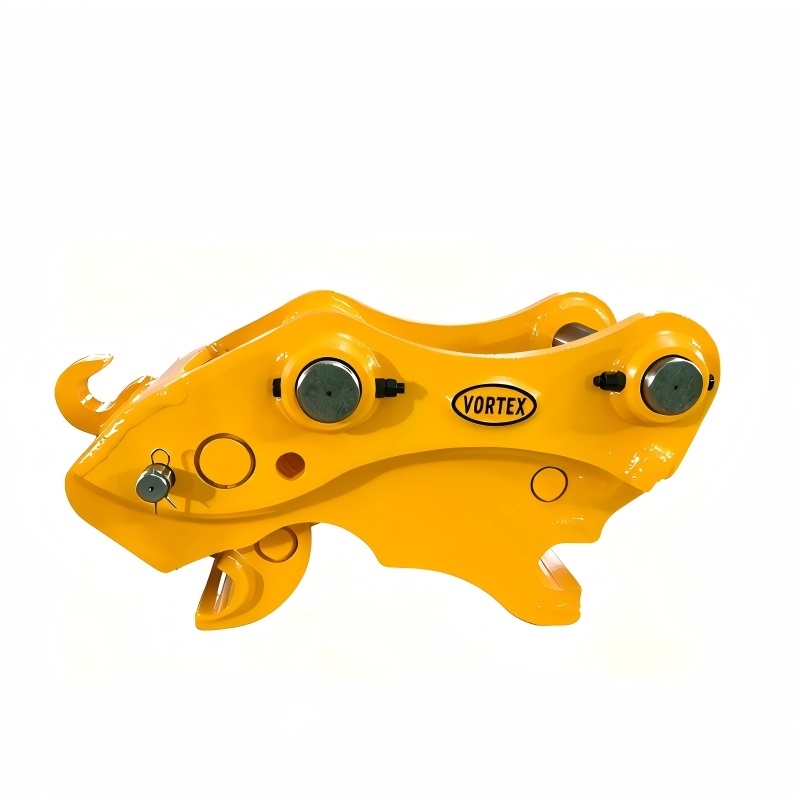

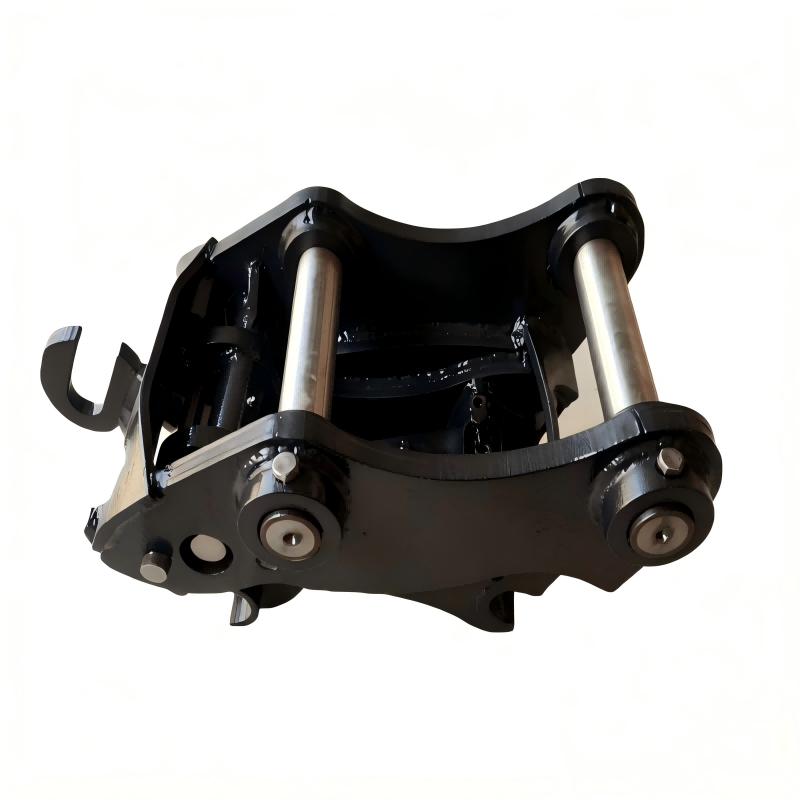

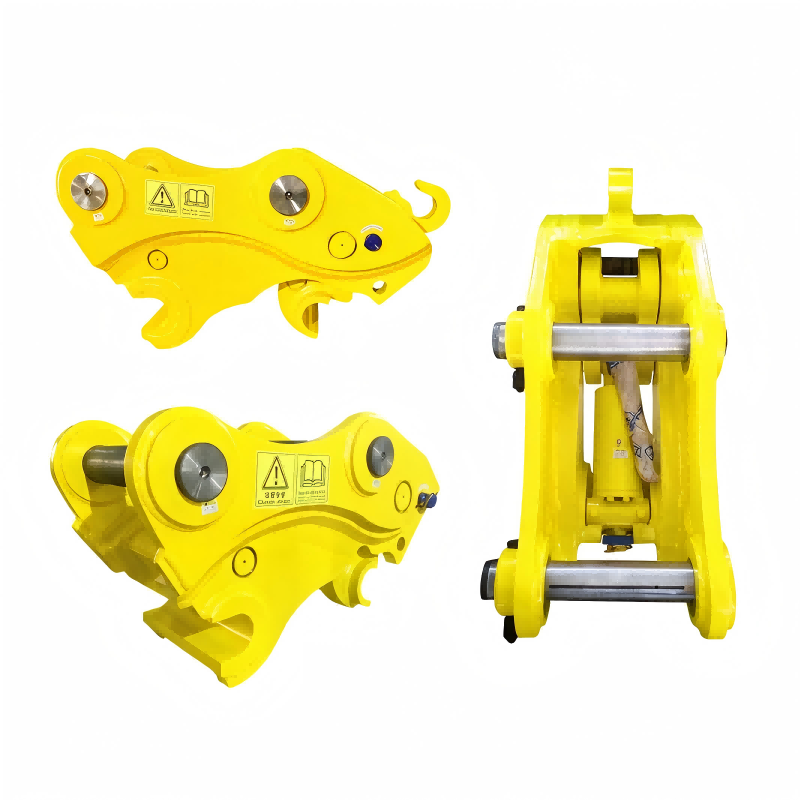

VORTEX Quick Coupler is engineered for the rapid and safe interchange of front-end work tools, such as buckets, hydraulic breakers, and shears on excavators.

GET A QUOTE

Download

View all downloads

Product Features：

The main structure is built with Q345 manganese steel plate, providing exceptional strength and corrosion resistance for long-term durability.

The pin shafts are precision-forged from 42CrMo alloy steel with built-in oil circuit, ensuring superior strength and wear resistance.

The cylinder is equipped with honed pipes and imported HALLITE seals, guaranteeing extended service life and leak-proof operation.

The movable jaw is equipped with a circlip and disk protection structure while the safety pin adopts a reinforced design to ensure safety and reliability.

Technical Specifications

Item/Model	Unit	VTC Mini	VTC 45	VTC 50/55	VTC 60/65	VTC 70/80	VTC 90	VTC 100/110
Carrier	Ton	1.5~4	4~7	5~8	9~19	17~23	23~30	33~45
L: Total Length	Mm	388	534~545	600	765	924~944	983~1050	1006~1473
H: Total Height	Mm	246	307	310	388	492	574	558~610
W: Total Width	Mm	175	258~263	270~280	353~436	449~483	543~568	606~663
Pin to Pin Center Distance	Mm	80~150	230~270	290~360	380~420	460~480	473~540	550~620
Forearm Open Width	Mm	80~140	155~170	180~200	232~315	306~340	375~411	416~469
Retractable Distance of Oil Cylinder	Mm	170~206	205~275	340~450	340~486	256~390	413~590	520~590
Top to Bottom Pin Distance	Mm	159	195	195	220	275	300	360
Pin Diameter	Mm	25~40	45~50	50~55	60~70	70~80	80~90	90~120
Operation Pressure	Kg/CM2	40~380	40~380	40~380	40~380	40~380	40~380	40~380
Required Oil Flow	L/Min	10~20	10~20	10~20	10~20	10~20	10~20	10~20

Quick Coupler

Description

Product Features：

Technical Specifications
